GUIDE ONLY - must read the instructions included in the manual supplied with the model.

When positioning an ethanol fireplace in combination with a TV screen* there’s a few things to keep in mind. Here are three possible solutions.

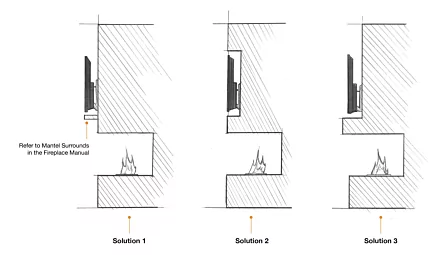

Solution 1

The TV needs a non-combustible mantel/ledge to act as a heat shield, or

Solution 2

the TV needs to be recessed in a niche 300 mm above fireplace opening, or

Solution 3

the TV needs to sit back off the level of the flame, and 300 mm above the fireplace opening.

Refer to Mantel Surrounds in the Fireplace Manual.

* Always check the specifications of the AV equipment being used to confirm suitability.
