Setting up your EcoSmart Fire Pop Series fireplace is simple, but securing it correctly is essential for safe, stable operation. Whether placed indoors or outdoors, this guide walks you through fixing your freestanding model in position, installing key components, and ensuring everything is ready for reliable, everyday use.

Do not operate the appliance until it has been securely fastened using the included ground fixing brackets.

Equipment required:

Timber/Wood: pencil, short philips head screw driver, drill and pilot drill bit.

Concrete/Stone: pencil, short philips head screw driver, hammer, masonry drill and masonry bit.

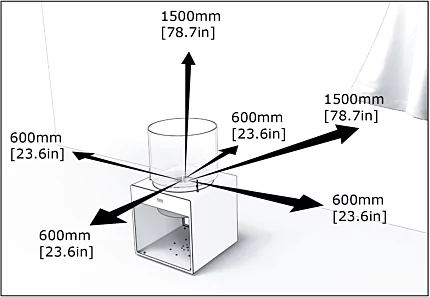

Fireplace Clearances

Position the fireplace in accordance to the compulsory minimum clearances outlined on the Fireplace Clearances page.

Installation

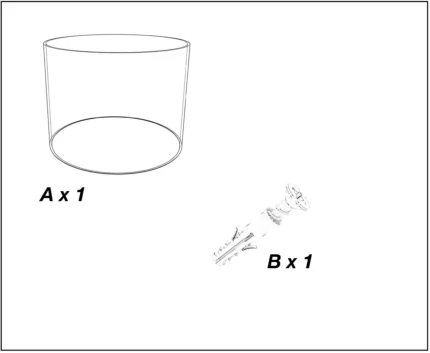

1. Confirm you have received all necessary parts as illustrated.

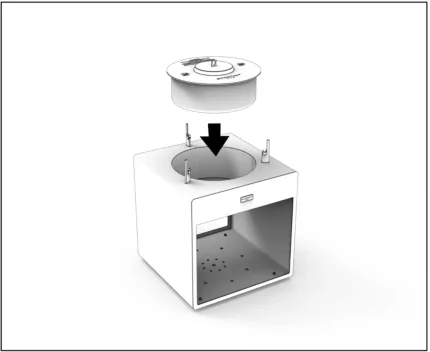

2. For indoor use, insert burner into the model.

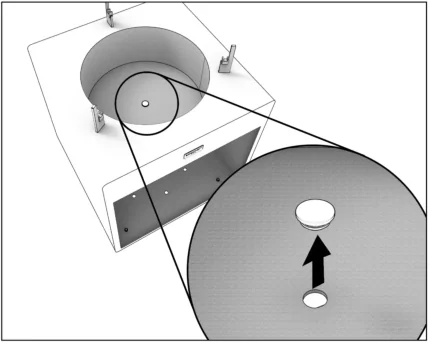

3. For outdoor use, remove the rubber plug located in the centre of the burner tray before inserting Burner.

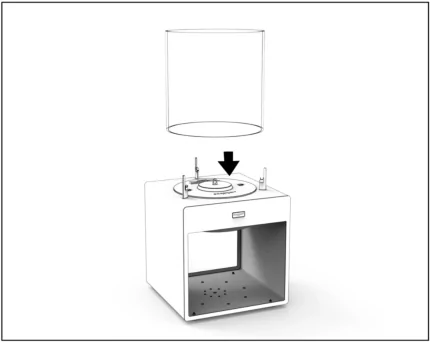

4. Carefully place the glass fire screen onto the three (3) metal brackets. Ensure bumpers are intact on the brackets to prevent damaging the glass fire screen.

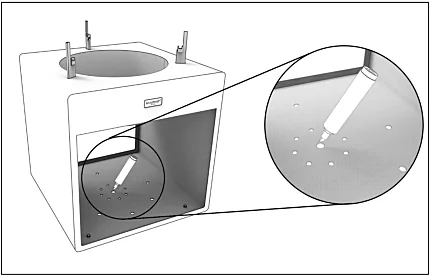

5. Mark the ground fixing positions.

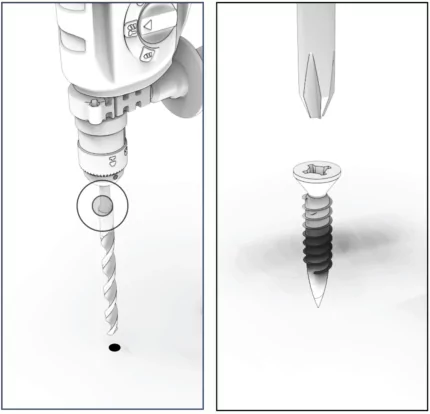

6a. Move fireplace and pilot drill one (1) hole for wood screws provided;

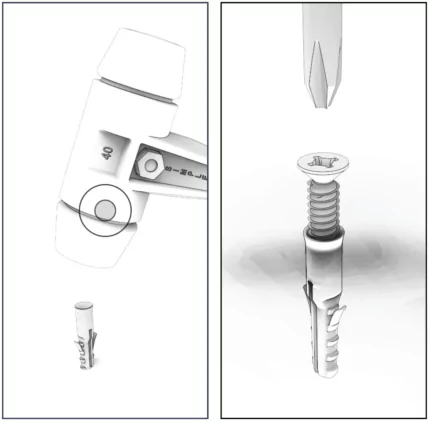

6b. Move fireplace and pilot drill one (1) hole for masonry anchors provided;

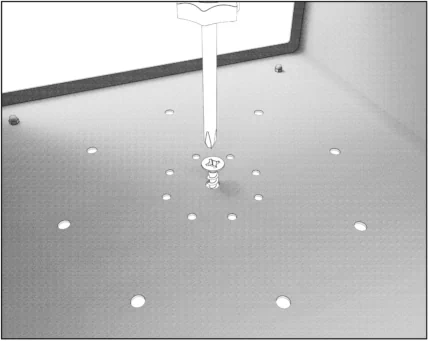

7. Align unit holes to drilled positions and secure the unit with the screws. Do not overtighten.

NEVER store e-NRG fuel or ethanol or flammable liquids in their original container, or the Jerry Can under the appliance.

Operate according to the Burner Operations Manual included with the burner.

Applies To:

• Pop 8L, Pop 8T, Pop 3L, Pop 3T
