This guide walks you through the installation of your EcoSmart Fire Ghost fireplace. Follow each step carefully to ensure safe and correct setup.

Do not operate the appliance until it has been securely fastened using the included ground fixing brackets.

Equipment required:

Timber/Wood: pencil, short philips head screw driver, drill and pilot drill bit.

Concrete/Stone: pencil, short philips head screw driver, hammer, masonry drill and masonry bit.

Clearances

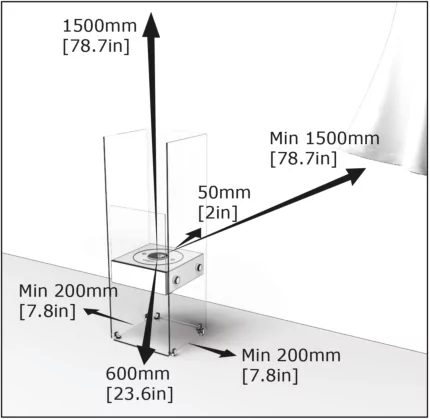

Position the fireplace in accordance to the compulsory minimum clearances outlined on the Fireplace Clearances page (indoor only).

Installation

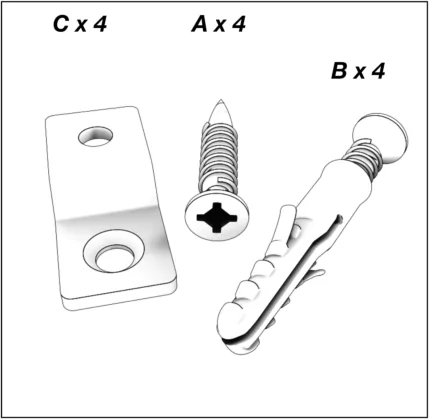

1. Confirm you have received all necessary parts as illustrated. For installing in timber/wood you will need part A. For installing in a concrete/stone you will need part B;

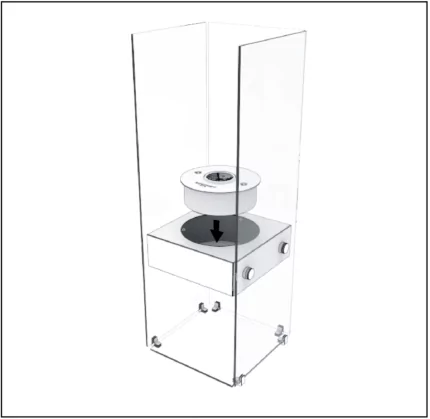

2. Insert burner into the model.

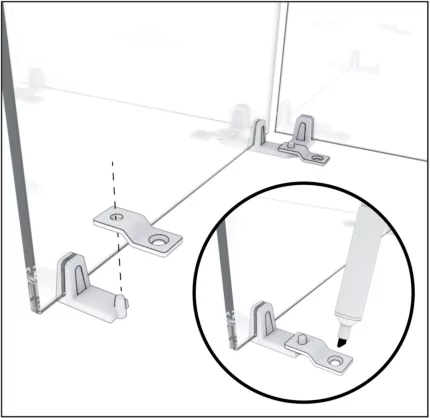

3. Use the 4 (four) tab holes to locate the 4 (four) off floor Ground Fixing Brackets (Part C). Use countersunk hole in brackets as a template for drilling hole centres;

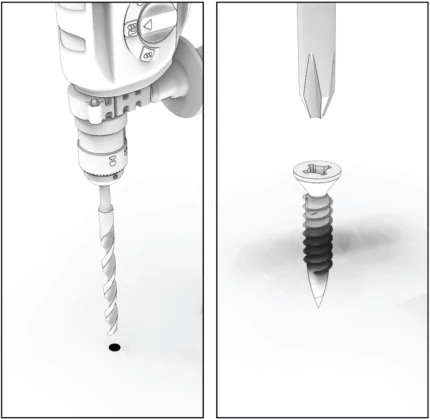

4a. Move fireplace and pilot drill 4 (four) holes for wood screws provided;

4b. Move fireplace and pilot drill 4 (four) holes for masonry anchors provided;

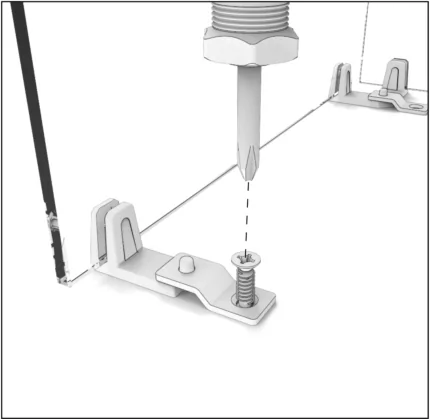

5. Re-position fireplace and fix screws through tabs in base plate to floor.

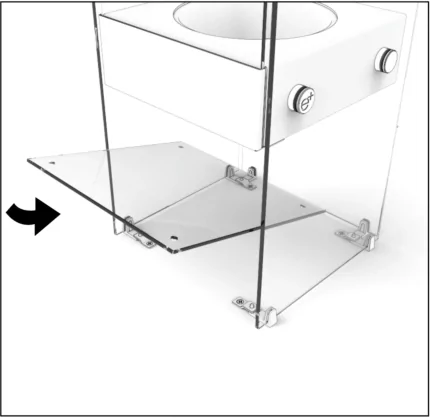

6. Slide into position the lower glass shelf.

A Fire Screen is available as an optional accessory. Installation steps are included in the packaging of the accessory.

NEVER store e-NRG fuel or ethanol or flammable liquids in their original container, or the Jerry Can under the appliance.

Operate according to the Burner Operations Manual included with the burner.

Applies To:

• Designer Fireplace (Ghost)
