Installation

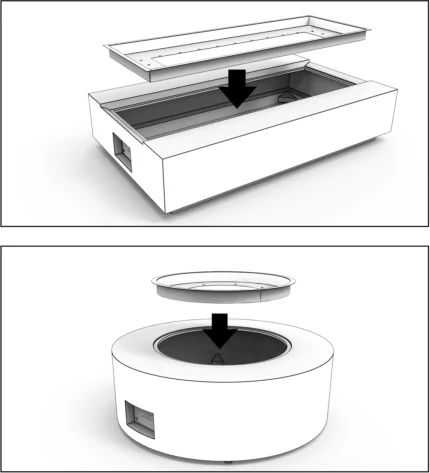

1. If your model comes with a metal tray, insert into the base.

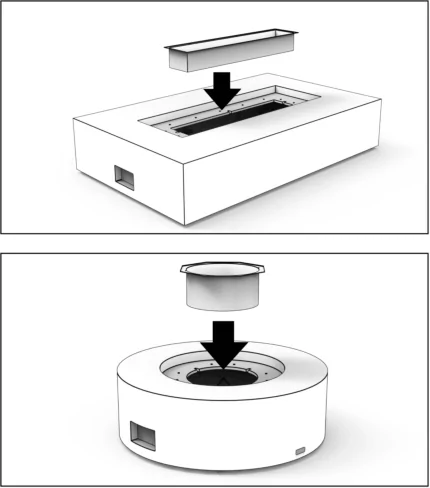

2. For Indoor Installations insert the Indoor Safety Tray. The appliance must not be operated indoors without the Safety Tray installed.

For outdoor installation go to Step 3.

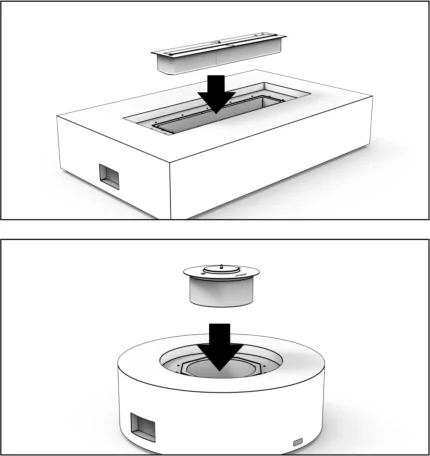

3. Insert Burner into model.

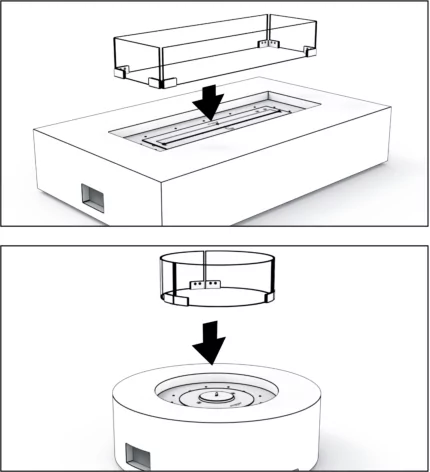

4. Glass Fire Screen Installation. (If applicable).

To assemble the Glass Fire Screens, refer to the assembly manual supplied with your glass fire screen. Do this prior to spreading decorative media within the tray.

Carefully (recommend 2 persons) place the assembled glass fire screen into the table recess, centre the glass screens to the burner.

If included as a standard part, the appliance must not be operated without the glass screen installed.

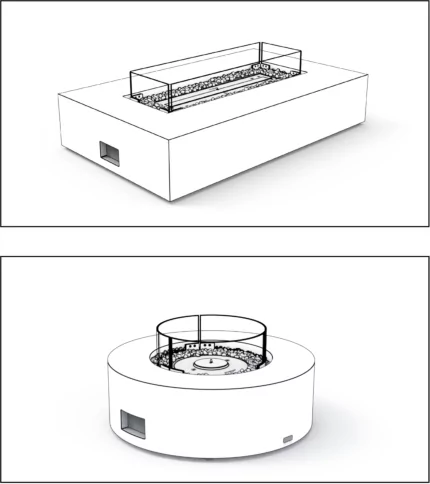

5. Add glass charcoal around the burner - be careful not to scratch the burner surface.

Do not place glass charcoal on top of the burner or where they can interfere with the operation of the burner or the flame.

6. These models come with Ground Fixing Brackets so they can be installed in a fixed position. Follow the instructions supplied with the Ground Fixing Brackets to complete the installation of the product.

Operate according to the Burner Operations Manual included with the burner.

Applies to:

• Fire Tables (Sidecar 24, Ark 40, Base 40, Base 30, Chaser 38, Mojito 40, Vertigo 40, Vertigo 50, Manhattan 50, Martini 50, Cosmo 50, Wharf 65, Daiquiri 70, Gin 90 Low, Gin 90 Chat, Gin 90 Dining, Gin 90 Bar)
• Fire Pits (Pod 30, Pod 40)
