Installation
1. Construct the fire pit surround/platform following the Cutout/Clearance Dimensions shown in the table below.

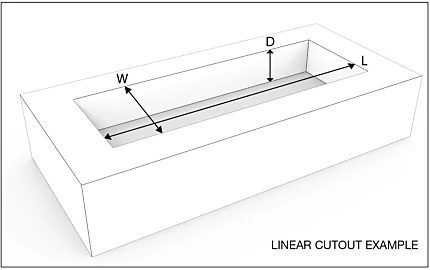

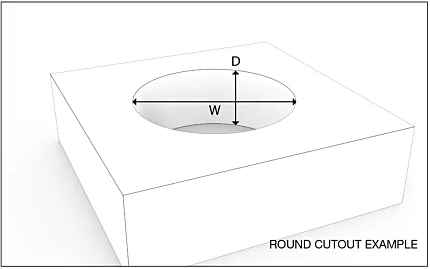

Cutout/Clearance Dimensions
Physical appliance dimensions should be verified against cut out dimensions BEFORE
installation begins to confirm tolerances align
| Appliance | LL | WW | D*D* |
| Round 20 | 594 [23.4] | 594 [23.4] | 215 [8.5] |
| Square 22 | 587 [23.1] | 587 [23.1] | 215 [8.5] |
| Linear 50 | 1167 [45.9] | 402 [15.8] | 167 [6.6] |
| Linear 65 | 1600 [63] | 420 [16.5] | 167 [6.6] |
| Linear 90 | 2258 [88.9] | 402 [15.8] | 167 [6.6] |
| Linear 130 | 3346 [131.7] | 402 [15.8] | 167 [6.6] |
*Minimum Dimensions

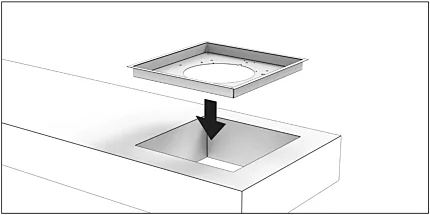

2. Insert the metal tray into the cutout.

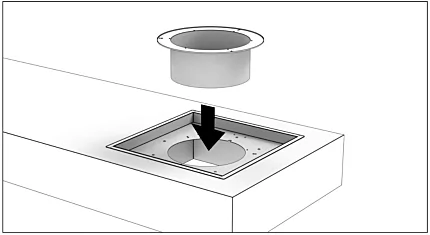

3. For Indoor Installations insert the Indoor Safety Tray. The appliance must not be operated indoors without the Safety Tray installed.
For outdoor installation go to Step 4.

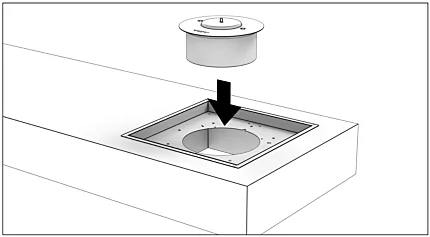

4. Insert Burner into metal tray.

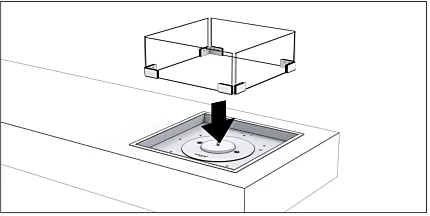

5. Glass Fire Screen Installation. (If applicable).
To assemble the Glass Fire Screens, refer to the assembly manual supplied with your glass fire screen. Do this prior to spreading decorative media within the tray.
Carefully (recommend 2 persons) place the assembled glass fire screen into the table recess, centre the glass screens to the burner.

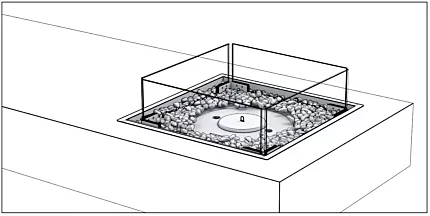

6. Add glass charcoal around the burner - be careful not to scratch the burner surface.
Do not place glass charcoal on top of the burner or where they can interfere with the operation of the burner or the flame.
Operate according to the Burner Operations Manual included with the burner.
Applies To
- All Bioethanol Fire Pit Kits
