Clearances Requirements – Bioethanol Designer Fireplaces
- Published:
- · Updated:
When using Bioethanol as a fuel source selected models are suitable for indoor and outdoor use.
Not intended for table-top use where frequent relocation is required. Do not operate the appliance until it has been securely fastened using the included ground fixing brackets.
Before installation ensure that the model is positioned in accordance with the compulsory minimum clearances outlined below.
Minimum Room Size
If used indoors ensure that you pay attention to the Minimum Room Sizes below:
| Pop 8LPop 8TPop 8T | 1x AB8/AB8(EN) | 116 m3 [4,096 ft3] |
| BeGhostMini TOrbitPillar SeriesPop 3LPop 3TPop 3T | 1x AB3 | 40 m3 [1,413 ft3] |
| Igloo | 1x BK5 | 70 m3 [2,472 ft3] |
Clearances
WARNING: Ensure that your fire is positioned away from flammable materials and other sources of ignition at all times. Pay very close attention to positioning the fire away from items that may move as a result of wind and drafts. For example trees/branches/curtains/paper and the like.
The base of the burner within the model must never come into direct contact with flammable materials.
Side clearances to fixed and stable furniture items that are not susceptible to movement (e.g lounges or patio furniture) must remain a minimum of 600mm [23.6in] away from the flame at all times.
Overhead clearances to items that are susceptible to movement (e.g. Trees) must remain a minimum of 2000mm [78.7in] away from the flame at all times.
Indoor Clearances
Outdoor Clearances
Stainless steel will rust or corrode over time if contamination or debris is not cleaned or removed immediately. When not in use, it is recommended that you protect your fireplace from water damage or corrosion with a protective cover and always use the Burner Lid included with your model to safeguard the burner.
Locating your appliance
Please do not remove the feet from the appliance, as they play an important role in providing adequate airflow of the undersides.

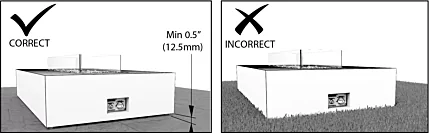

- Maintain a minimum air space of 12.5mm [0.5in] between the ground surface and the underside of the appliance sidewalls by adjusting the articulating feet up or down as necessary.
- Do not place the appliance over grass, artificial turf, carpet, rock, or any uneven surface.
DO NOT locate the appliance where it will get excessively wet or submerged in water.
Applies to:
- Designer Fireplaces (Mello, T-Lite 3, T-Lite 8, Pillar 3L, Pillar 3T, Pop 3L, Pop 3T, Pop 8L, Pop 8T, Orbit, Be, Mini T, Ghost, Igloo)
