Converting your fire table or fire pit into a functional coffee table is simple with the included glass cover plates and leveller jacks. This guide walks you through each step, from preparing the burner tray to adjusting the glass for a perfectly level finish. Whether you own a Pod, Sidecar, Ark, Gin or any other model in the range, you will have your surface ready in minutes.

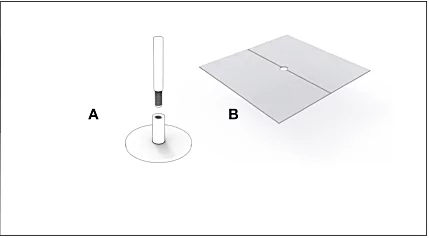

Included parts: (Quantity depends on model)

A. Glass leveller jacks

B. Glass cover plates

Before you convert your fire pit table into a coffee table

• Ensure burner is off and cool.
• Remove fire screens (if applicable).
• Clear decorative media from the edges of the tray.

Installation Instructions

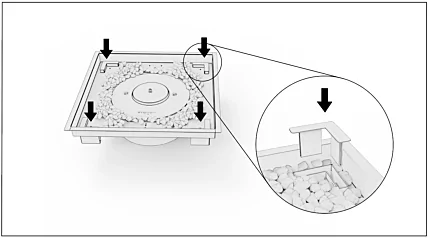

1. If your tray has Raised Corner Pockets: Ensure that the metal corner caps are installed as shown below (Metal corner caps are included with the metal tray).

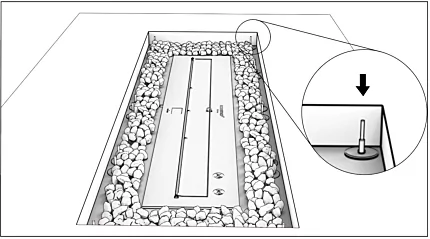

2. Place the glass leveller jacks (Parts A) on all corners (for square and rectangular trays), and on each side where the glass top will join in the middle to provide sufficient support. Ensure that the glass leveller jacks sit on a flat surface.

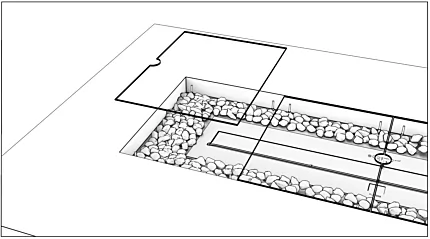

3. Gently place the glass cover plates (Parts B) onto the leveller jacks. Check that the glass cover plates sit flat and firm on the leveller jacks, adjust the pin that screws up and down to fine tune the height to support the glass.

Decorative media may need to be adjusted for the glass cover plates to sit flat. Be careful not to scratch the glass.

Note: The glass leveller jacks do not need to be removed when operating your fire.
​
​Applies to:

• Fire Tables: Sidecar 24, Ark 40, Base 40, Base 30, Chaser 38, Mojito 40, Vertigo 40, Vertigo 50, Manhattan 50, Martini 50, Cosmo 50, Wharf 65, Daiquiri 70, Gin 90 Low, Gin 90 Chat, Gin 90 Dining, Gin 90 Bar
• Fire Pits: Pod 30, Pod 40
