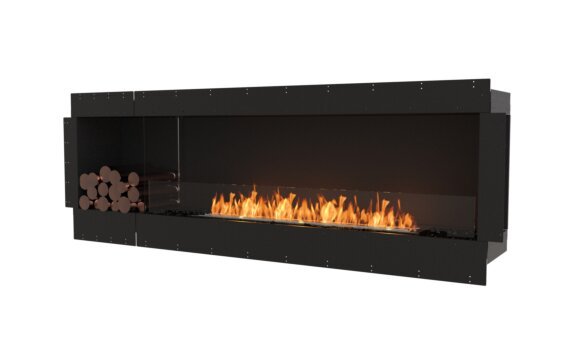

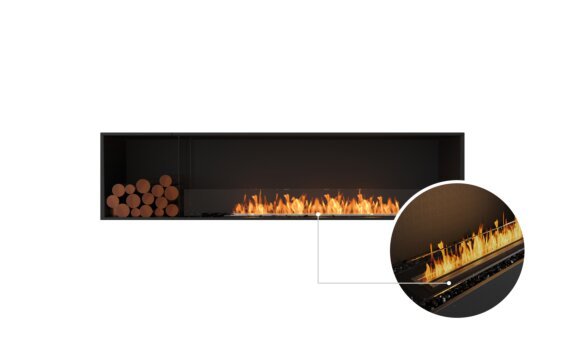

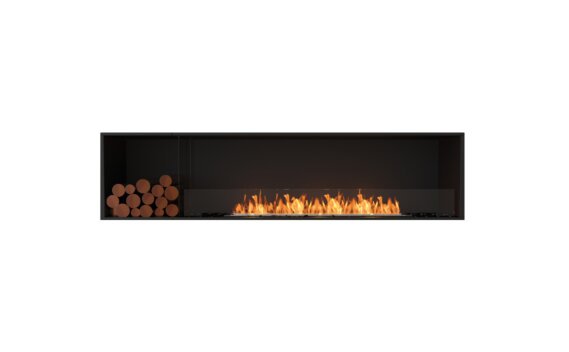

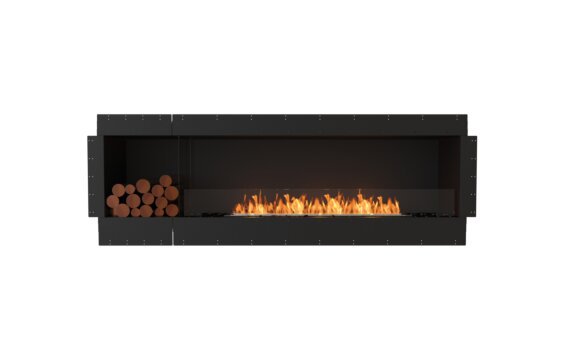

Flex 86SS.BXL Single Sided Fireplace Insert

Starts at $9,995.00

Enjoy an alluring flame from any angle you look at it.

Specifically designed for a single room application, the Flex Single Sided Fireplace Insert features one open side, enabling the flame to be viewed from the front. The bioethanol, true zero-clearance fireplace can be used to create a striking addition to a feature wall, integrated within cabinetry or a fireplace setting - whether in a residential dining room, indoor or outdoor living area, or commercial spaces.

The Flex 86SS.BXL comes with a Decorative Box on the left-hand side. The design is fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.

The longest of the XL Burner series, the XL1200 delivers a stunning linear flame. With a 10L capacity, this elongated burner can heat up to 65m2 and provides the ideal bioethanol fire for commercial and hospitality spaces such as open plan restaurants and bars.

Each burner holds 10L of fuel, and can deliver a stunning flame for up to 14 hours.

The Flex 86SS.BXL complies with the ACCC Safety Mandate.

Configure & Buy

Buy online and get it delivered to your door.

Select Fuel Type*

Ethanol Ethanol Burner Low Stock: 3 days
Ethanol  - Studio Image by MAD Design Group

Select Burner Colour*

Stainless Steel Low Stock: 3 days
Stainless Steel  - Studio Image by MAD Design Group
Black In Stock: 3 days + $500.00
Black  - Studio Image by MAD Design Group

Add Accessories

Log Set Copper Decorative Media - Studio Image by Blinde Design
Log Set Copper Backorder: 8-10 wks +$395.00
  • Included Accessories:
  • Fire Lighter
  • Lighting Rod
  • Jerry Can 5L
  • Bottle Adaptor
  • XL Baffles
  • Black Glass Charcoal

Add e-NRG Bioethanol

How much fuel do I need?
e-NRG Bioethanol Bioethanol Fuel - Studio Image by MAD Design Group
e-NRG Bioethanol In Stock: Ready to ship From $220.00
  • 40L 2 cartons +$220.00
  • 60L 3 cartons +$330.00
  • 80L 4 cartons +$440.00
  • 100L 5 cartons +$550.00
  • 120L 6 cartons +$660.00
  • 140L 7 cartons +$770.00
  • 160L 8 cartons +$880.00
  • 180L 9 cartons +$990.00
  • 200L 10 cartons +$1,100.00

Order Summary

$9,995.00 Prices include GST* Tax Information
POA Shipping Price on Application*
Quote Required
Shipping Information
Unspecified Unspecified Ship Times
or use our express checkout options
* Prices include GST. Tax Information * Standard Shipping provides ground delivery to the curb. Shipping Information * All times, dates, and inventory levels are subject to change at anytime.

Inspiration

EcoSmart FLEX68SS Espace_Res AUS 1.jpg Open Gallery
The Edge Development Group
EcoSmart FLEX68SS Espace_Res AUS 2.jpg Open Gallery
The Edge Development Group
EcoSmart Flex_68SS Drummoyne AU 1.jpg Open Gallery
Webb's joinery
EcoSmart Flex_68SS Drummoyne AU 2_1.jpg Open Gallery
Webb's joinery
EcoSmart Flex_68SS Drummoyne AU 3.jpg Open Gallery
Webb's joinery

Key Features

Application

Indoor or outdoor single room application. With one open side, view the flame from the front.

Colours

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No gas or electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and easy assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Decorative side box

Includes one decorative side box to fill with your chosen noncombustible accessory.

Optional log sets

Eye-catching accessory for the decorative side box. Made from stainless steel with a patina finish, they are available in two different finishes: Brass or Copper.

Wind screen

Included integrated windscreen sits flush behind frame.

Technical Specifications

Construction

  • Weight 119kg [263lb]
  • Model Dimensions mm [in] W 2390mm [94.1in] D 365mm [14.4in] H 807mm [31.8in]
  • Viewing Area mm [in] W 2190mm [86.2in] D 340mm [13.4in] H 502mm [19.8in]
  • Materials Mild Steel & Toughened Glass
  • Colours
Our fireboxes are manufactured to the highest standards and in accordance with ISO 9001:2008.

Fuel Efficiency

Volume Capacity
10 L
2.6 Gal
Heats on Average
65m2
700ft2
Minimal Room
115m3
4061ft3
Thermal Output
15290 BTU/h
4.5 kW 17 MJ/h
Burn Time
9-14h
10 Litres
* These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.

FAQ's

View All

What maintenance is required for ethanol fireplaces?

Clean your EcoSmart Fire unit after you have used 50 liters [13.20 Gal.] of fuel or as soon as you notice black deposits on or near the burner of the ethanol fireplace. Black marks can be removed from the stone, solid surfaces or stainless steel with a mild abrasive washing product such as JIF or similar. It is recommended to test a small area first to ensure the cleaning product chosen is appropriate and will not mark or damage the surface. Burners can be washed as required in hot soapy water (even in your dishwasher) from time to time and the internal mechanics won’t deteriorate like some other brands as all internal parts are stainless steel.

How does an ethanol fireplace work?

EcoSmart Fire’s ethanol fireplaces are self-contained, burning bioethanol fuel that is housed within the stainless steel container. A flame regulator controls and stabilizes the flame. With a designated filling area, and easy shut off mechanism, you can ignite the flame and turn it off in a matter of seconds. View this quick demonstration video to help illustrate the process.

How long does it take to assemble?

There is virtually no assembly. Our Freestanding and Fireplace Grates ranges are designed to be placed into the desired location, secured into position, and operated immediately. Our Fireplace Inserts are designed to slot into place, secured and built around with your preferred finish – again a quick and easy installation – so your builder or interior designer will love you!

The longest part of the setup process is trying to figure out where you want to place it – be sure it complies with our clearance requirements particularly with regard to moving objects like curtains, tree branches and so forth.

Can I extinguish my ethanol fireplace before the fuel has burnt?

Yes, you can turn your EcoSmart Fire ethanol burner off at any given time, even if there is ethanol still left in the burner. It is recommended however, that you leave it to burn until it completely runs out. The shut off mechanism is there for security and safety for those times when you need to leave the house, as it is not safe to leave a fire unattended. You need to wait until your appliance cools to room temperature (60 minutes) before re-igniting, this is because hot vapours are a hazard and may cause a strong, initial ignition if the ethanol has not cooled long enough. This is also to ensure that the flame has been totally extinguished and that the appliance is safe to refuel if the amount of fuel in the burner at that time is insufficient for your next ignition / use.

How to install a TV or AV equipment above an ethanol fireplace?

This design can be achieved as long as the TV is protected. You have 3 possible solutions:

Solution 1: The TV needs a non-combustible mantel/ledge to act as a heat shield

Solution 2: The TV needs to be recessed in a niche

Solution 3: The TV needs to sit back off the level of the flame

How to position your TV

Why use bioethanol?

Bioethanol, a renewable energy, is the cleanest and most efficient fuel on the market, which means there are no emissions and no soot or ash to clean up.

Is their heat output similar to a gas heater?

Burning bioethanol is similar to gas, but the room doesn't dry out like it does with gas - a more gentle, softer heat is created. Heat-wise, it depends on the models being compared. Some of our bioethanol burners output 15,000 BTU and can heat up to 60sqm of living space. Bioethanol is not, however, on an adjustable thermostat. Some may be turned up and down, but you can't control the room temperature in the same way as you do with gas on mains

What is a bioethanol fireplace?

A Bioethanol fireplace is an open fireplace that is fueled by bioethanol. A real flame is produced by the lighting of bioethanol, with a by-product being heat in the process. It is a fireplace that needs no flue for exhausting emissions, no utilities such as electricity or gas connection, and it uses a sustainable fuel source.
