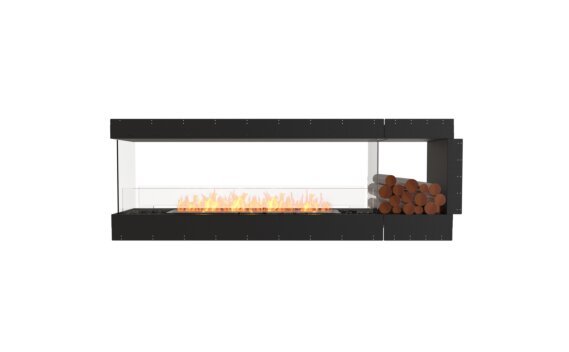

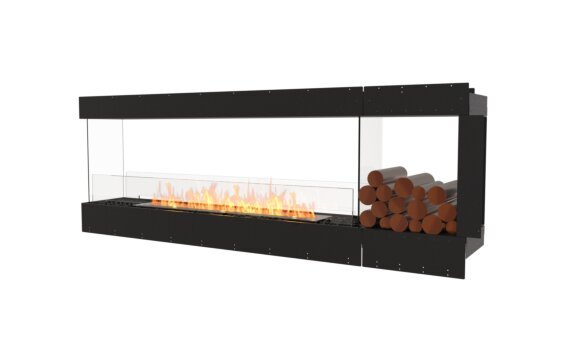

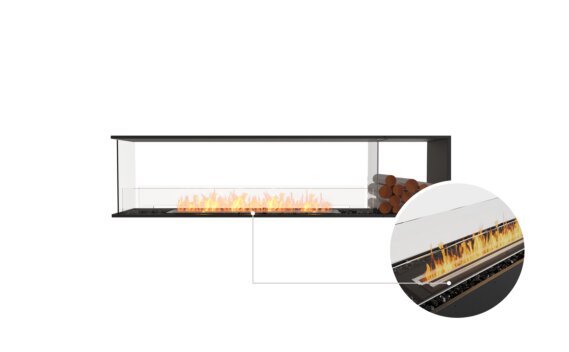

Flex 86PN.BXR Peninsula Fireplace Insert

Starts at $9,995.00

A multi-view peninsula fireplace delivers a flame to multiple rooms.

Designed as a room divider, the Peninsula Fireplace Insert features three open sides, enabling the mesmerising flame to be viewed from any direction - the front, back and open side.

The three transparent sides create an eye-catching focal point and provide the perfect solution to heating multiple rooms, to integrating within commercial/hospitality spaces and dividing open floor plans.

The Flex 86PN.BXR comes with a Decorative Box on the right-hand side. The design is fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.

The longest of the XL Burner series, the XL1200 delivers a stunning linear flame. With a 10L capacity, this elongated burner can heat up to 65m2 and provides the ideal bioethanol fire for commercial and hospitality spaces such as open plan restaurants and bars.

Each burner holds 10L of fuel, and can deliver a stunning flame for up to 14 hours.

The Flex 86PN.BXR complies with the ACCC Safety Mandate.

Configure & Buy

Buy online and get it delivered to your door.

Select Fuel Type*

Ethanol Ethanol Burner Backorder: 6-8 wks
Ethanol  - Studio Image by MAD Design Group

Select Burner Colour*

Stainless Steel Backorder: 6-8 wks
Stainless Steel  - Studio Image by MAD Design Group
Black In Stock: 3 days + $500.00
Black  - Studio Image by MAD Design Group

Add Accessories

Log Set Copper Decorative Media - Studio Image by Blinde Design
Log Set Copper Low Stock: 3 days +$395.00
Log Set Brass Decorative Media - Studio Image by Blinde Design
Log Set Brass Backorder: 6-8 wks +$395.00
  • Included Accessories:
  • Fire Lighter
  • Lighting Rod
  • Jerry Can 5L
  • Bottle Adaptor
  • XL Baffles
  • Black Glass Charcoal

Add e-NRG Bioethanol

How much fuel do I need?
e-NRG Bioethanol Bioethanol Fuel - Studio Image by MAD Design Group
e-NRG Bioethanol In Stock: Ready to ship From $220.00
  • 40L 2 cartons +$220.00
  • 60L 3 cartons +$330.00
  • 80L 4 cartons +$440.00
  • 100L 5 cartons +$550.00
  • 120L 6 cartons +$660.00
  • 140L 7 cartons +$770.00
  • 160L 8 cartons +$880.00
  • 180L 9 cartons +$990.00
  • 200L 10 cartons +$1,100.00

Order Summary

$9,995.00 Prices include GST* Tax Information
POA Shipping Price on Application*
Quote Required
Shipping Information
Unspecified Unspecified Ship Times
or use our express checkout options
* Prices include GST. Tax Information * Standard Shipping provides ground delivery to the curb. Shipping Information * All times, dates, and inventory levels are subject to change at anytime.

Inspiration

ESF.FX.140PN.BX2 living_area.jpg Open Gallery
Digital Render
esf flex 68pn artisan builders us 1_2.jpeg Open Gallery
Artisan Builders
esf flex 68pn artisan builders us 2.jpeg Open Gallery
Artisan Builders
EcoSmart FLEX_68PNL.BXR.jpg Open Gallery
Digital Render
ESF.FX.18PN living_area.jpg Open Gallery
Digital Render

Key Features

Application

Indoor or outdoor single room application. With two open side, view the flame from the left and the front.

Colours

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No gas or electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and easy assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Decorative side box

Includes one decorative side box to fill with your chosen noncombustible accessory.

Optional log sets

Eye-catching accessory for the decorative side box. Made from stainless steel with a patina finish, they are available in two different finishes: Brass or Copper.

Wind screen

Included integrated windscreen sits flush behind frame.

Technical Specifications

Construction

  • Weight 124kg [274lb]
  • Model Dimensions mm [in] W 2332mm [91.8in] D 354mm [13.9in] H 807mm [31.8in]
  • Viewing Area mm [in] W 2232mm [87.9in] D 352mm [13.9in] H 502mm [19.8in]
  • Materials Mild Steel & Toughened Glass
  • Colours
Our fireboxes are manufactured to the highest standards and in accordance with ISO 9001:2008.

Fuel Efficiency

Volume Capacity
10 L
2.6 Gal
Heats on Average
65m2
700ft2
Minimal Room
115m3
4061ft3
Thermal Output
15290 BTU/h
4.5 kW 17 MJ/h
Burn Time
9-14h
10 Litres
* These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.

FAQ's

View All

How to install a TV or AV equipment above an ethanol fireplace?

This design can be achieved as long as the TV is protected. You have 3 possible solutions:

Solution 1: The TV needs a non-combustible mantel/ledge to act as a heat shield

Solution 2: The TV needs to be recessed in a niche

Solution 3: The TV needs to sit back off the level of the flame

How to position your TV

Is their heat output similar to a gas heater?

Burning bioethanol is similar to gas, but the room doesn't dry out like it does with gas - a more gentle, softer heat is created. Heat-wise, it depends on the models being compared. Some of our bioethanol burners output 15,000 BTU and can heat up to 60sqm of living space. Bioethanol is not, however, on an adjustable thermostat. Some may be turned up and down, but you can't control the room temperature in the same way as you do with gas on mains

How long does it take to assemble?

There is virtually no assembly. Our Freestanding and Fireplace Grates ranges are designed to be placed into the desired location, secured into position, and operated immediately. Our Fireplace Inserts are designed to slot into place, secured and built around with your preferred finish – again a quick and easy installation – so your builder or interior designer will love you!

The longest part of the setup process is trying to figure out where you want to place it – be sure it complies with our clearance requirements particularly with regard to moving objects like curtains, tree branches and so forth.

How do I clean my EcoSmart Fire ethanol burner?

Cleaning of the ethanol burner should be done only after you have used 50 litres of fuel or as soon as you notice a black residue forming around or on the burner. Before starting, make sure the burner is off, empty of ethanol, and at room temperature. Spray a multi-purpose cleaner on the surface of the burner and wipe with cloth, making sure to wipe in the direction of the grain. If material has fallen into the ethanol fireplace burner use a vacuum cleaner to remove debris through the burner opening. If your burner smells unusually strong after extensive use, remove the empty and room temperature burner from its surround and wash in hot, soapy water. Rinse thoroughly under running water and wait until the burner is completely dry before placing it back into its surround and reusing. View this video of the simple cleaning process here: https://youtu.be/VqHg9mXOc0U

Note: Stainless steel will rust or corrode over time if contamination or debris is not cleaned or removed immediately. When not in use, we recommend that you protect your ethanol fireplace from water damage or corrosion with a protective cover and the regular use of the burner lid included with your model.

What is bioethanol fuel?

Bioethanol (also known as methylated spirits or simply ethanol) is a form of renewable energy. It’s a clear, colourless liquid that’s commonly made from fermenting the sugar and starch components of plant by-products like sugarcane and grain crops.

Do I need to service my ethanol fireplace in any way?

Yes, normal maintenance and care is very important! Instructions are included in the Installation, Operating and Maintenance Manual supplied with your EcoSmart Fire product.

Can EcoSmart Fires be installed everywhere?

Almost everywhere! EcoSmart Fires cannot be installed into small rooms that are less than our minimum room size which is burner specific. For all other installations, you must comply with our compulsory clearances and installation instructions. Approval from building authorities may be required prior to installation in your area. Please make sure you contact appropriate parties before installing your EcoSmart Fire.

Are EcoSmart Fires easy to install?

EcoSmart Fires are designed to be easily installed and operated. Without the need for a flue or pipe connection, EcoSmart Fires are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact your local distributor.
