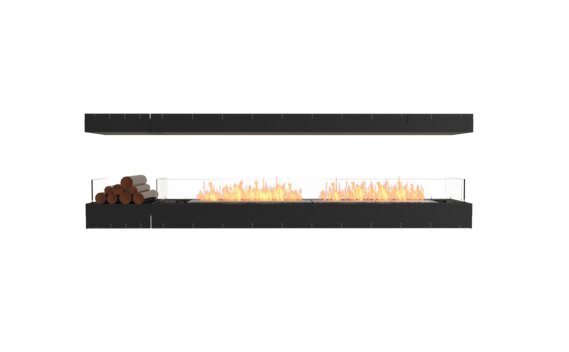

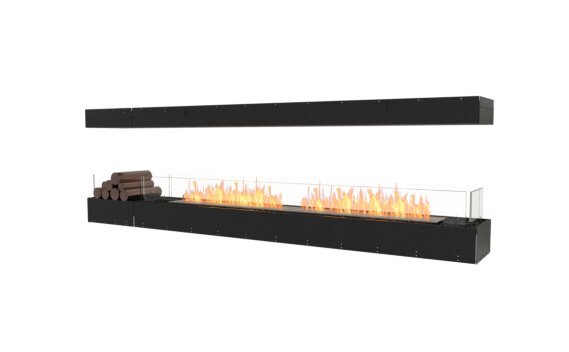

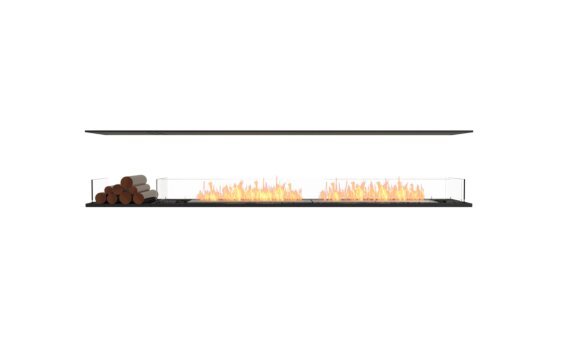

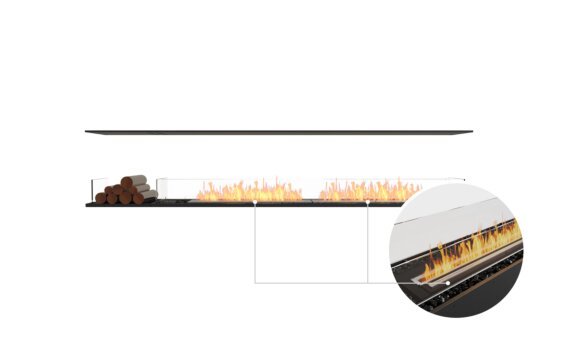

Flex 104IL.BX1 Island Fireplace Insert
Designed as a room divider with four open sides.
The zero-clearance Flex Island fireplace insert is designed as a room divider, with four open sides enabling the hypnotic flame to be viewed from the front, back, left and right sides. The UL Listed Flex Island models come with a base component that holds the burner and a top component that lines the bulkhead above.
With an EcoSmart Flex 104IL.BX1, you have design freedom with the choice of a Decorative Box on the left or right-hand side. Both designs are fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.
One of the longest flames available in the Flex Series is created by using 2 of our ever-popular XL900 burners. With an overall heating capacity of 120m2 this appliance is best suited to large open spaces - think hotel lobby, large open plan restaurants.
Each burner holds 9L of fuel, and can deliver a stunning flame for up to 13 hours.
Configure & Buy
Buy online and get it delivered to your door.Inspiration
Key Features
Multi room
Indoor or outdoor multi room application. With four open sides, view the flame from multiple vantage points.
Base + bulkhead
Flex Island models come with a base component that holds the burner and a top component that lines the bulkhead above.
No gas or electricity
No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.
Self contained
All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls.
Zero clearance
The zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.
Quick and easy assembly
Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.
Colours
Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.
Luxurious finish
Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.
Rust proof
Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.
Wind screen
Includes a translucent, toughened glass fire screen that provides an added layer of safety, peace of mind and comfort.
Clean burning
The fireplace inserts are fuelled by eco-friendly clean-burning e-NRG bioethanol, a renewable energy that emits no soot or smoke.
Technical Specifications
Construction
- Weight 116kg [256lb]
- Model Dimensions mm [in] W 2733mm [107.6in] D 354mm [13.9in] H 807mm [31.8in]
- Viewing Area mm [in] W 2645mm [104.1in] D 340mm [13.4in] H 502mm [19.8in]
- Materials Mild Steel & Toughened Glass
- Colours
Accessories
Includes everything you need to easily operate and protect your investment for many years to come.Fuel Efficiency
Volume Capacity
Heats on Average
Minimal Room
Thermal Output
Burn Time
FAQ's
View AllWhy use bioethanol?
Bioethanol, a renewable energy, is the cleanest and most efficient fuel on the market, which means there are no emissions and no soot or ash to clean up.
How do I clean my EcoSmart Fire ethanol burner?
Cleaning of the ethanol burner should be done only after you have used 50 litres of fuel or as soon as you notice a black residue forming around or on the burner. Before starting, make sure the burner is off, empty of ethanol, and at room temperature. Spray a multi-purpose cleaner on the surface of the burner and wipe with cloth, making sure to wipe in the direction of the grain. If material has fallen into the ethanol fireplace burner use a vacuum cleaner to remove debris through the burner opening. If your burner smells unusually strong after extensive use, remove the empty and room temperature burner from its surround and wash in hot, soapy water. Rinse thoroughly under running water and wait until the burner is completely dry before placing it back into its surround and reusing. View this video of the simple cleaning process here: https://youtu.be/VqHg9mXOc0U
Note: Stainless steel will rust or corrode over time if contamination or debris is not cleaned or removed immediately. When not in use, we recommend that you protect your ethanol fireplace from water damage or corrosion with a protective cover and the regular use of the burner lid included with your model.
What are some key benefits – compared to other heating options?
When you choose ethanol as your fuel source over gas or wood, you are totally simplifying your installation requirements and costs. There's no flue or chimney required when burning ethanol, which means that you have the ultimate in design flexibility to achieve an open fire in so many more areas of your home - both indoors and out.
What maintenance is required for ethanol fireplaces?
Clean your EcoSmart Fire unit after you have used 50 liters [13.20 Gal.] of fuel or as soon as you notice black deposits on or near the burner of the ethanol fireplace. Black marks can be removed from the stone, solid surfaces or stainless steel with a mild abrasive washing product such as JIF or similar. It is recommended to test a small area first to ensure the cleaning product chosen is appropriate and will not mark or damage the surface. Burners can be washed as required in hot soapy water (even in your dishwasher) from time to time and the internal mechanics won’t deteriorate like some other brands as all internal parts are stainless steel.
Is their heat output similar to a gas heater?
Burning bioethanol is similar to gas, but the room doesn't dry out like it does with gas - a more gentle, softer heat is created. Heat-wise, it depends on the models being compared. Some of our bioethanol burners output 15,000 BTU and can heat up to 60sqm of living space. Bioethanol is not, however, on an adjustable thermostat. Some may be turned up and down, but you can't control the room temperature in the same way as you do with gas on mains
Do I need to service my ethanol fireplace in any way?
Yes, normal maintenance and care is very important! Instructions are included in the Installation, Operating and Maintenance Manual supplied with your EcoSmart Fire product.
Can I extinguish my ethanol fireplace before the fuel has burnt?
Yes, you can turn your EcoSmart Fire ethanol burner off at any given time, even if there is ethanol still left in the burner. It is recommended however, that you leave it to burn until it completely runs out. The shut off mechanism is there for security and safety for those times when you need to leave the house, as it is not safe to leave a fire unattended. You need to wait until your appliance cools to room temperature (60 minutes) before re-igniting, this is because hot vapours are a hazard and may cause a strong, initial ignition if the ethanol has not cooled long enough. This is also to ensure that the flame has been totally extinguished and that the appliance is safe to refuel if the amount of fuel in the burner at that time is insufficient for your next ignition / use.
Are EcoSmart Fires easy to install?
EcoSmart Fires are designed to be easily installed and operated. Without the need for a flue or pipe connection, EcoSmart Fires are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact your local distributor.
